Pneumatic Rotary Indexing Tables
We manufacture 7” to 15” compressed air powered rotary tables for use in your next assembly or machining project. By using shop air, an indexing cylinder, and accurate locking mechanism we can ensure a smooth and controlled indexing motion without the use of electric motors or controllers.
Model 794 (7″)
Perfect for those applications where ruggedness and compact size are critical
Model 1092 (10″)
An excellent medium duty indexer for general purpose use

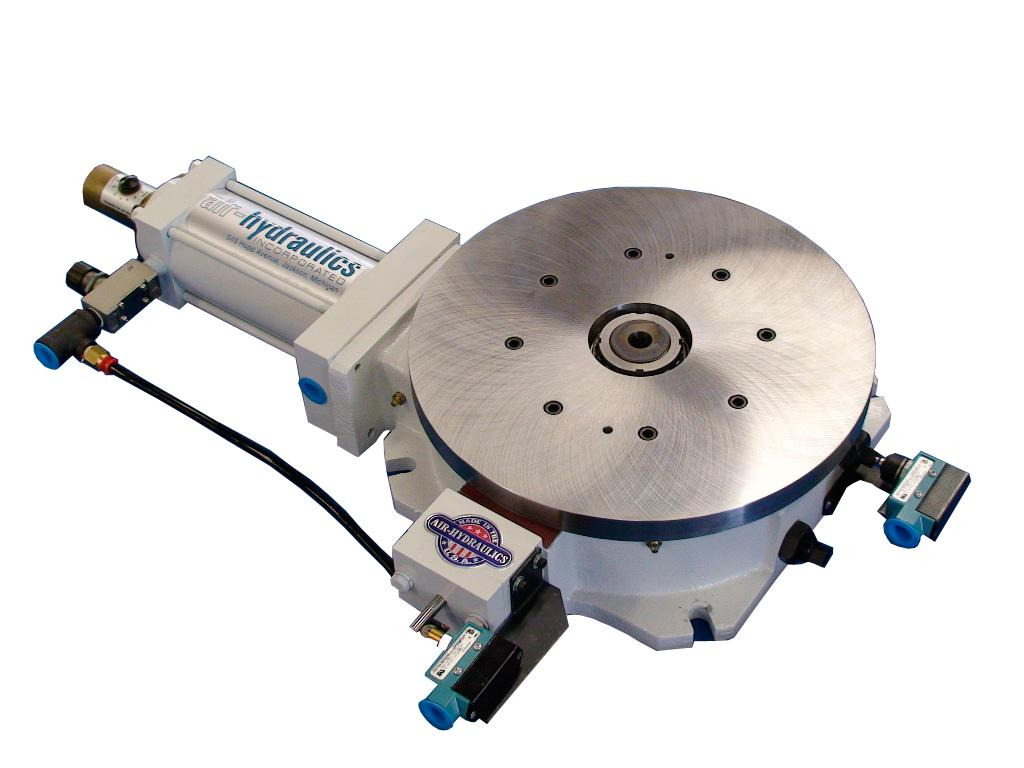

Model 1581 (15″)
An outstanding performer with virtually unlimited applications
With weight allowances up to 600 lb., our heavy duty rotary index tables are perfect for any indexing or positioning application. Purely pneumatic and low profile by design, we are sure you will enjoy the simple, highly efficient automation these indexing machines provide.
High Quality, Pneumatic Indexing Tables
Extremely reliable, low maintenance, and accurate pneumatic rotary index tables for your assembly process with a low-profile, yet heavy duty design. Compare models to see which indexing table will work for your application, or request a quote based on your needs for our recommendation and pricing.
Compare Models
Standard Indexing Table Features
- Tapered Roller Bearing Construction
- Postive Index, Postive “Shot Pin” Locking
- +/- .001″ Accuracy at Table Top Diameter
- Two Electric Microswitches To Sense Indexing and Locking Positions
- Up to 24 Indexing Stations Available
- Clockwise Rotation
Additional options available. Request a quote for an estimate based on the options you need for your positioning table.
Need assistance customizing an entire manufacturing workflow? Collaborate with the Air Hydraulics team to design a streamlined manufacturing process that fits your business.
